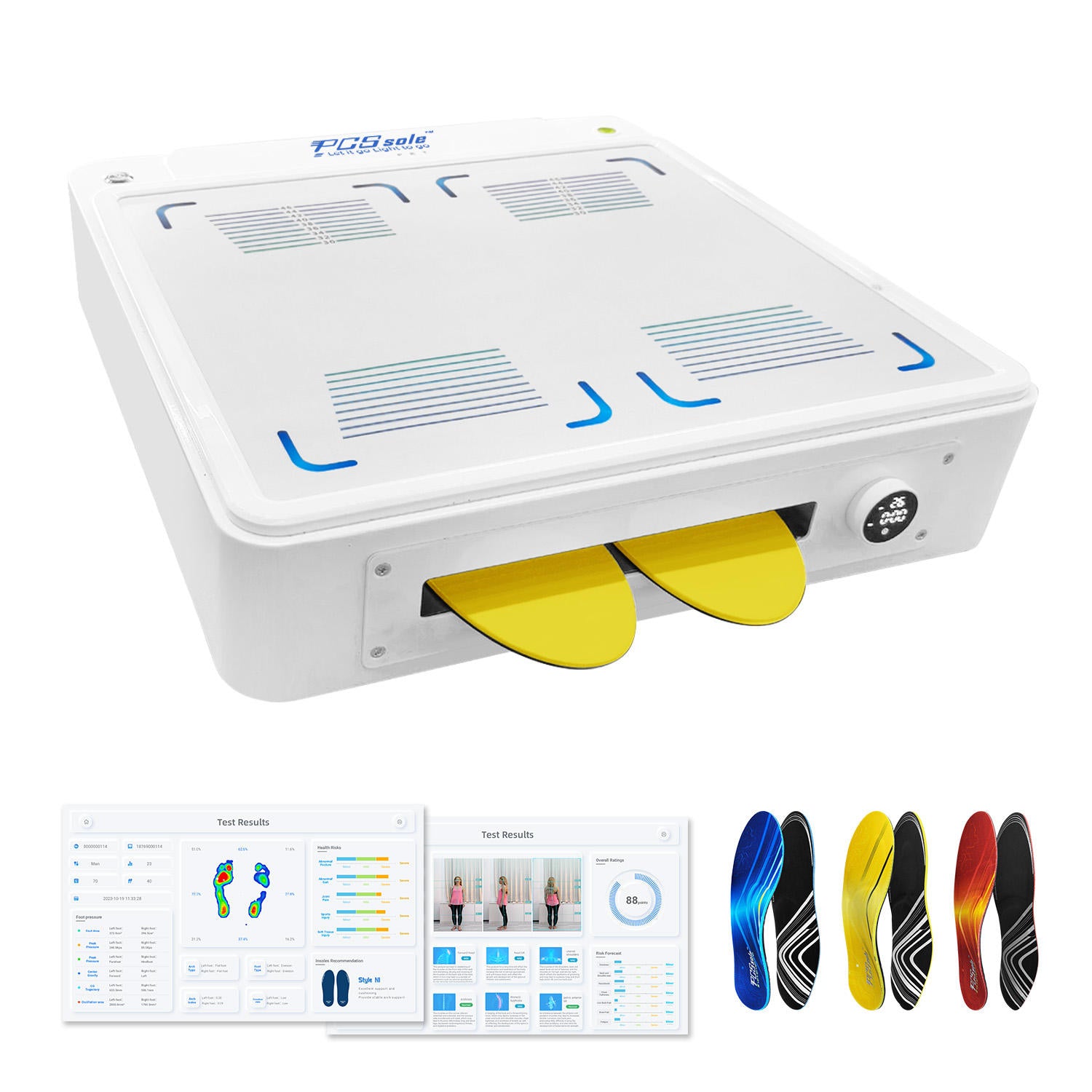

C1 Portable Foot Pressure Scanner For Orthotics

$2,780.00 $2,580.00

PCSsole customization system is a comprehensive testing and analysis system with three functions: plantar pressure analysis, posture analysis, and insole customization. Based on advanced AI algorithms, machine vision recognition, and digital pressure detection technology, it can accurately detect the distribution of pressure on the soles of the feet and assess postural morphological problems in the head, shoulders, neck, spine, pelvis, lower limbs, and other parts.

Insole Customization System Technical Parameters
Device model C1
Functions
  • Foot pressure detection
  • Posture analysis
  • Foot pad customization
Measurement items
  • Arch type and index
  • Foot posture classification
  • Transverse arch condition
  • Plantar pressure distribution (percentage)
  • Postural assessments of the head, shoulders, neck, spine, pelvis, and lower limbs, etc.
Testing report Generates a comprehensive Plantar Pressure and Posture Analysis Report
Sensor type Piezoresistive sensor
Number of sensors 1600
Sensor service life >1000000
Display method 13-inch color touch screen
Power requirements AC 220V, 50Hz
Operating environment
  • Temperature: 10°C to 40°C
  • Humidity: 30%–75% (non-condensing)
Device dimensions
  • Size: 500 × 630 × 1200 mm (W × D × H)
  • Weight: 40 kg

Quantity (pairs)：1 - 500
Lead time (days)：30

Quantity (pairs)：>500
Lead time (days)：To be negotiated

Customized logo
Min. order:1000pair

Customized packaging
Min. order:1000pair

Graphic customization
Min. order:1000pair

Share

Foot pressure scanner C1 and orthotic insoles for personalized foot support solutions.
